Vanessa

How do I receive 4 channels from EyeTV Netstream 4Sat on my Mac?

Recommended Posts

Vanessa    0

EyeTV software version 3.6.3 and above can use two of the EyeTV Netstream 4Sat tuners by default. The other two are reserved for mobile use.

However, you can try a special command in the Terminal, which is a currently experimental (unsupported) way to use four tuners all at once on your Mac.

1) Quit EyeTV
2) Open the Terminal application, from the Applications/Utilities folder
3) Enter this command into the Terminal

defaults write com.elgato.eyetv “max SAT2IP tuners” -int 4

4) Press Return
5) Quit the Terminal
6) Launch EyeTV again.

This assumes that you have the appropriate LNB that has the capacity to receive 4 channels at once.

Using 4 tuners at once will significantly increase the amount of network bandwidth in use, and will require more processing power.  Performance may be hindered depending on your computer and network speed.  You may not be able to receive 4 simultaneous HD channels via typical wireless networks.

Since this is an experimental and unsupported feature, we welcome feedback, but cannot yet guarantee that the experience will be 100% stable.

Multituner Setup

Please note that the number of channels which can be watched or recorded simultaneously of course also depends on the satellite configuration:

DiSEqC:

Output of a Single LNB connected to port 1 of EyeTV Netstream 4Sat -> 1 channel

Both outputs of a Twin LNB connected to port 1 and 2 of EyeTV Netstream 4Sat -> 2 channels

All four outputs of a Quad orQuattro LNB connected to port 1 – 4  of EyeTV Netstream 4Sat -> 4 channels

DiSEqC has to be configured correctly in the EyeTV Netstream app settings.

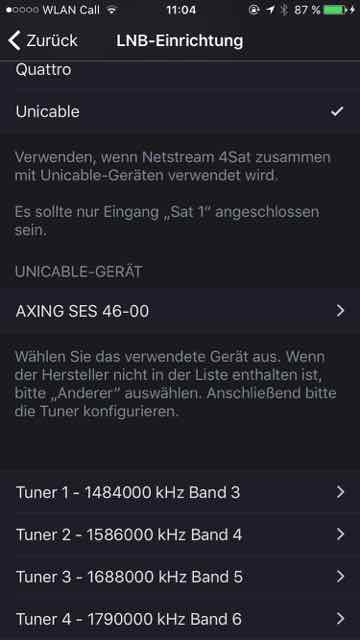

Unicable:

One Unicable output is connected to port 1 of EyeTV Netstream 4Sat -> 1 – 4 channels depending on the number of available User Bands.

The User Bands have to be configured correctly in the EyeTV Netstreamapp settings.

Share this post


Link to post
Share on other sites
Veloraptor    0

Hi, just tried to activate the 4 tuners but your advice is not working: "defaults[75989:13492319] Unexpected argument tuners”; leaving defaults unchanged."



Any ideas?

Share this post


Link to post
Share on other sites
OldGoat    0

Same result for me and get the following:



~ $ defaults read com.elgato.eyetv | grep  "SAT"

    "use white list for SAT-IP" = 0;


There doesn't appear to be a item "SAT2IP"

Also tried:


~ $ defaults write com.elgato.eyetv “max SAT-IP tuners” -int 4

2017-01-22 16:13:40.541 defaults[65494:27411099] Unexpected argument tuners”; leaving defaults unchanged.

~ $ defaults write com.elgato.eyetv “max SAT-IP” -int 4

2017-01-22 16:13:52.830 defaults[65504:27411224] Unexpected argument -int; leaving defaults unchanged.


I also have an EyeTV Diversity connected and can recored simultaneous programs on it while simultaneously recording 2 on Netstream 4SAT and record 2 more Netstream 4SAT programs on another computer.

Share this post


Link to post
Share on other sites
Veloraptor    0

Did Vanessa leave the forum? Her last visit was December 7?! ....



Did anyone else (from GT) read the thread?

Edited by Veloraptor

Share this post


Link to post
Share on other sites
fissionbomb    0
On 06/06/2016 at 9:03 AM, Vanessa said:

EyeTV software version 3.6.3 and above can use two of the EyeTV Netstream 4Sat tuners by default. The other two are reserved for mobile use.

However, you can try a special command in the Terminal, which is a currently experimental (unsupported) way to use four tuners all at once on your Mac.

1) Quit EyeTV
2) Open the Terminal application, from the Applications/Utilities folder
3) Enter this command into the Terminal

defaults write com.elgato.eyetv “max SAT2IP tuners” -int 4

4) Press Return
5) Quit the Terminal
6) Launch EyeTV again.

This assumes that you have the appropriate LNB that has the capacity to receive 4 channels at once.

Using 4 tuners at once will significantly increase the amount of network bandwidth in use, and will require more processing power.  Performance may be hindered depending on your computer and network speed.  You may not be able to receive 4 simultaneous HD channels via typical wireless networks.

Since this is an experimental and unsupported feature, we welcome feedback, but cannot yet guarantee that the experience will be 100% stable.

Multituner Setup

Please note that the number of channels which can be watched or recorded simultaneously of course also depends on the satellite configuration:

DiSEqC:

Output of a Single LNB connected to port 1 of EyeTV Netstream 4Sat -> 1 channel

Both outputs of a Twin LNB connected to port 1 and 2 of EyeTV Netstream 4Sat -> 2 channels

All four outputs of a Quad orQuattro LNB connected to port 1 – 4  of EyeTV Netstream 4Sat -> 4 channels

DiSEqC has to be configured correctly in the EyeTV Netstream app settings.

Unicable:

One Unicable output is connected to port 1 of EyeTV Netstream 4Sat -> 1 – 4 channels depending on the number of available User Bands.

The User Bands have to be configured correctly in the EyeTV Netstreamapp settings.

i tried this too for long time ago and i was getting same output from terminal. it looks like noone is here from GT

Edited by fissionbomb

Share this post


Link to post
Share on other sites
OldGoat    0
17 minutes ago, Mikyesun said:

sorry for late
coming back on this - this is only a format issue, ...
Mike





Please explain what the "format issue" is and how it can be changed?

Share this post


Link to post
Share on other sites
OldGoat    0

I raised an incident regarding this with Geniatech Support and finally had a response after 3 weeks.  It suggested that I do what we have been doing above and my response was to send them a link to this discussion.  I't might be another 3 weeks before they respond but we'll see.

Share this post


Link to post
Share on other sites
Ton    11

I omce was so dumb to buy the Netstream 4C. It had the same problem. For almost a full month Ihave been emailing with their technical people.

None had a solution.

So I returned the unit to the reseller because it did not work as expected. Also because in their information  there is no limitations mentioned.

elsewhere in this forum this issue is discussed and there a member of GT said the limitations is built in because in their opinion no one will want to encore/watch more than 2 station. Dumb idea!



Share this post


Link to post
Share on other sites
Mikyesun    9

Question: How do I receive 4 Channels from eyetv Netstream 4sat on my Mac.



Please get the latest eyetv 3 Version 3.6.9 (7514), downloaded and installed https://www.geniatech.eu/eyetv/software/,



– again this version is mandatory, we tested with MacOS Sierra

EyeTV software version 3.6.9 and above, as a standard can use two (2) of the EyeTV Netstream 4Sat tuners by default. The other two are reserved for mobile use.



However, you can try a special command in the Terminal, which is a currently experimental (unsupported) way to use four tuners all at once on your Mac.



1) Quit EyeTV
2) Open the Terminal application, from the Applications/Utilities folder
3) Enter this command into the Terminal





defaults write com.elgato.eyetv "max SAT2IP tuners" -int 4



4) Press Return
5) Quit the Terminal
6) Launch EyeTV again.





This assumes that you have the appropriate LNB that has the capacity to receive 4 channels at once.

Using 4 tuners at once will significantly increase the amount of network bandwidth in use, and will require more processing power.  Performance may be hindered depending on your computer and network speed.  You may not be able to receive 4 simultaneous HD channels via typical wireless networks.

However, you can try a special command in the Terminal, which is a currently experimental (unsupported) way to use four tuners all at once on your Mac.



Since this is an experimental and unsupported feature, we welcome feedback, but cannot yet guarantee that the experience will be 100% stable.





Multituner Setup


Please note that the number of channels which can be watched or recorded simultaneously of course also depends on the satellite configuration:

DiSEqC:

  • Output of a Single LNB connected to port 1 of EyeTV Netstream 4Sat -> 1 channel
  • Both outputs of a Twin LNB connected to port 1 and 2 of EyeTV Netstream 4Sat -> 2 channels
  • All four outputs of a Quad orQuattro LNB connected to port 1 – 4  of EyeTV Netstream 4Sat -> 4 channels

DiSEqC has to be configured correctly in the EyeTV Netstream app settings.

Unicable:

  • One Unicable output is connected to port 1 of EyeTV Netstream 4Sat -> 1 – 4 channels depending on the number of available User Bands.

The User Bands have to be configured correctly in the EyeTV Netstreamapp settings.




Share this post


Link to post
Share on other sites
OldGoat    0

Hi Mikyesun,  I was trying this with 3.6.3 (7516) which I installed because of EyeConnect not working and leading me to install 7516 which didn't sort the EyeConnect anyway. Geniatech's website is a bit confusing in that it lists builds 7515 & 7516 which one would believe are later than 7514.  That said I do now have this working with build 7514.  Not only can I record 4 channels from Netstream 4SAT I can also record 2 more channels from my EyeTV Diversity.  This may sound a bit of overkill but the EyeTV Diversity is useful in that it allows the use of the EyeTV remote control for both 4SAT & Diversity which is very handy.  I now have to sort out the EyeConnect problem but that's for a different topic although I do have a support ticket open for it.  Connection speed to NS 4SAT is not a problem as my iMac is connected by cable to router.  Recording 6 channels may prove to be too much of a load on computer itself but that's my problem.

Thanks for your help.

589b34fcd8e47_EyeTV6channelrecordingSS.thumb.jpg.c6ecb7a7fdef67b161e0b38c62474036.jpg

Share this post


Link to post
Share on other sites
Mikyesun    9
20 hours ago, OldGoat said:

Hi Mikyesun,  I was trying this with 3.6.3 (7516) which I installed because of EyeConnect not working and leading me to install 7516 which didn't sort the EyeConnect anyway. Geniatech's website is a bit confusing in that it lists builds 7515 & 7516 which one would believe are later than 7514.  That said I do now have this working with build 7514.  Not only can I record 4 channels from Netstream 4SAT I can also record 2 more channels from my EyeTV Diversity.  This may sound a bit of overkill but the EyeTV Diversity is useful in that it allows the use of the EyeTV remote control for both 4SAT & Diversity which is very handy.  I now have to sort out the EyeConnect problem but that's for a different topic although I do have a support ticket open for it.  Connection speed to NS 4SAT is not a problem as my iMac is connected by cable to router.  Recording 6 channels may prove to be too much of a load on computer itself but that's my problem.

Thanks for your help.

589b34fcd8e47_EyeTV6channelrecordingSS.thumb.jpg.c6ecb7a7fdef67b161e0b38c62474036.jpg

wow - thats impressive load, and good feedback, I am a litte confused about your eyetv 3 Version the last we released is eyetv 3 version 3.6.9 (7514) - sorry if we have confusing you, again latest version you always find here

Share this post


Link to post
Share on other sites
Mikyesun    9

@all,

we have tested successfully based on MacOS Sierra and  eyetv 3 version 3.6.9 (7514) also the eyetv netstream 4c (cable), we can record 4 channel or record 2 and watch 2 channels. If you wanna try, please follow the instruction above, and again you can try that special command in the Terminal, which is a currently experimental (unsupported) way to use four tuners all at once on your Mac.

kind regards

Mike

Share this post


Link to post
Share on other sites
OldGoat    0
4 hours ago, Mikyesun said:

wow - thats impressive load, and good feedback, I am a litte confused about your eyetv 3 Version the last we released is eyetv 3 version 3.6.9 (7514) - sorry if we have confusing you, again latest version you always find here

https://www.geniatech.eu/eyetv/support/eyetv-3-en/

Shows

589c660a5dd78_ScreenShot2017-02-09at12_49_15.thumb.jpg.5754abd28e6f85c6d5a1a46903432321.jpg
https://www.geniatech.eu/eyetv/software/

589c671a643b9_ScreenShot2017-02-09at12_55_31.thumb.jpg.3835930156a7d0ef2dc2abd5b660fe18.jpg



As far as I know the usual practice is the higher the build number (7516 in this case) for the same version number, the more recent the version is with the highest build number being the latest.  Am I wrong?  I am assuming that 7514, 7515 & 7516 are build numbers.

This is how I was lead to install build 7516.  When selecting "Share my EyeTV archive" the EyeConnect Update Required dialog box opened, when clicking on it, it opened https://www.geniatech.eu/eyetv/support/eyetv-3-en/.  Now I'm not sure which version of EyeTV I was running but having found that uninstalling EyeTV doesn't uninstall EyeConnect and leaves other preference files laying about.  All seems to be in order now.

589c9c163f75a_EyeConnectUpdateRequired.thumb.jpg.60234889177ab8138db88731bcbee882.jpg







Share this post


Link to post
Share on other sites
thomaskud    10
6 minutes ago, OldGoat said:

https://www.geniatech.eu/eyetv/support/eyetv-3-en/

Shows

589c660a5dd78_ScreenShot2017-02-09at12_49_15.thumb.jpg.5754abd28e6f85c6d5a1a46903432321.jpg
https://www.geniatech.eu/eyetv/software/

589c671a643b9_ScreenShot2017-02-09at12_55_31.thumb.jpg.3835930156a7d0ef2dc2abd5b660fe18.jpg



As far as I know the usual practice is the higher the build number (7516 in this case) for the same version number, the more recent the version is with the highest build number being the latest.  Am I wrong?  I am assuming that 7514, 7515 & 7516 are build numbers.

This is how I was lead to install build 7516.  When selecting "Share my EyeTV archive" the EyeConnect Update Required dialog box opened, when clicking on it, it opened https://www.geniatech.eu/eyetv/support/eyetv-3-en/.  Now I'm not sure which version of EyeTV I was running but having found that uninstalling EyeTV doesn't uninstall EyeConnect and leaves other preference files laying about.  All seems to be in order now.

589c9c163f75a_EyeConnectUpdateRequired.thumb.jpg.60234889177ab8138db88731bcbee882.jpg







That is EyeTV 3.6.9(7416), not 7516. So the latest version of EyeTV 3 is 3.6.9(7514) now.

Share this post


Link to post
Share on other sites
Veloraptor    0

Hi guys, may I switch back the discussion to the releasing of 4 Tuners in EyeTV?

I have used the new syntax and in fact, Terminal responds with acceptance. Great. But still only 2 Tuners appear at EyeTV, although I have activated all four with the Jetstream app on the iPad.?!

@mikyesun: Can you confirm that also 4 unviable tuners are released to EyeTV?



Kind regards.


Share this post


Link to post
Share on other sites
OldGoat    0
My apologies to all for saying that the build numbers were not correct.  Evidently I had recurring episodes of being crosseyed when looking at the two web pages.  Just goes to show you that you see what you expect to see.  See http://theinvisiblegorilla.com/gorilla_experiment.html

I have to admit I don’t understand why 7415 & 7416 are available for download as they seem to have been replaced by 7514.  And I think it would be better if all downloads were on the same page with notations as to why they are available.  I found using 2 different pages confusing and got completely muddled up by the similarity of the numbers, 7x14, 7x15, 7x16.  Hope this exercise has been useful to others.

Share this post


Link to post
Share on other sites
Mikyesun    9
10 hours ago, OldGoat said:
My apologies to all for saying that the build numbers were not correct.  Evidently I had recurring episodes of being crosseyed when looking at the two web pages.  Just goes to show you that you see what you expect to see.  See http://theinvisiblegorilla.com/gorilla_experiment.html

I have to admit I don’t understand why 7415 & 7416 are available for download as they seem to have been replaced by 7514.  And I think it would be better if all downloads were on the same page with notations as to why they are available.  I found using 2 different pages confusing and got completely muddled up by the similarity of the numbers, 7x14, 7x15, 7x16.  Hope this exercise has been useful to others.

you right, one place - we will work on this, thanks for this advise...

Share this post


Link to post
Share on other sites
Mikyesun    9
11 hours ago, Veloraptor said:

Hi guys, may I switch back the discussion to the releasing of 4 Tuners in EyeTV?

I have used the new syntax and in fact, Terminal responds with acceptance. Great. But still only 2 Tuners appear at EyeTV, although I have activated all four with the Jetstream app on the iPad.?!

@mikyesun: Can you confirm that also 4 unviable tuners are released to EyeTV?



Kind regards.


yes - I can confirm, you are on unicable, or on qad / lnb?

Share this post


Link to post
Share on other sites
Mikyesun    9

Hi Peter,

thanks for notice - hm - we will check with Unicable /4sat today - this so far we have not tested - only settings for 4sat/Quad LNB and 4c and again we are in a early experimental stage, we come back on this.

Share this post


Link to post
Share on other sites
Mikyesun    9

Hi Peter,

tried, I verified your results, based on macOS 10.12.3 (16D32) with eyetv 3 version 3.6.9 (7514) and with Unicable settings below, 4 Tuners cannot be access, will check with R&D and come back, please stay tuned.




Share this post


Link to post
Share on other sites
